Lippert Belt Conveyor Riser Belt Conveyor GF 4920-550-400
Prices plus VAT plus shipping costs
Delivery time approx. 5-10 days.
Pick up by arrangement.
- Order number: RA1606
Lippert belt conveyor ascending belt GF 4920-550-400
The Lippert belt conveyor is from 2001 and in a good (used) condition. The belt conveyor has a SEW brand motor with MOVIMOT frequency converter to control the speed. Side guides and/or light barriers can be mounted on request at extra cost. Supports are not included in the delivery. These are optionally available on request.

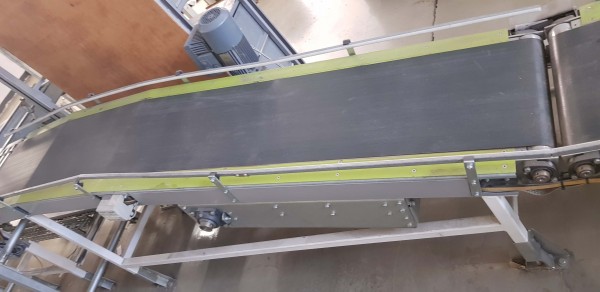

The pictures shown of the conveyor system were taken in a logistics center while it was still installed.
Conveyor length (NL): 4920 mm (leading belt + ascending belt with bend and upper straight)
stand width (NB): 550 mm
belt width (GuB): 400 mm
overall height (BH): 105 mm
support feet: optional
Conveyor speed (v m/s): adjustable up and down with frequency converter
Drive: SEW gearmotor SA37 DT80K4/MM05/BW1
Electrical data: 50Hz V380-500, kW 0.11 / 0.55 / S1
Idler pulley (UR): Ø = 81 mm
Drive pulley (AT): Ø = 131 mm
Belt: Type XVT-2128
Year of manufacture: 2001
incline / decline: adjustable
Side guides one and both sides
Prices net plus VAT ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg, Germany
|Conveying length in mm:||4920|
|Nominal / outside width in mm:||550|
|Belt width in mm:||400|
|Engine type:||SEW Eurodrive Zentralantrieb mit Spannstation|
|Conveyor speed m / s:||freely adjustable|
|scope of delivery:||without supports and side guides|
