Lippert belt conveyor tight belt transfer GF 1000-550-400

Preview: Lippert belt conveyor tight belt transfer GF 1000-550-400

Lippert belt conveyor tight belt transfer GF 1000-550-400

€1,919.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Order number: RA2508

Lippert belt conveyor belt transfer GF 1000-550-400 RA2508 Technical data: Conveying... more

Close menu

Product information "Lippert belt conveyor tight belt transfer GF 1000-550-400"

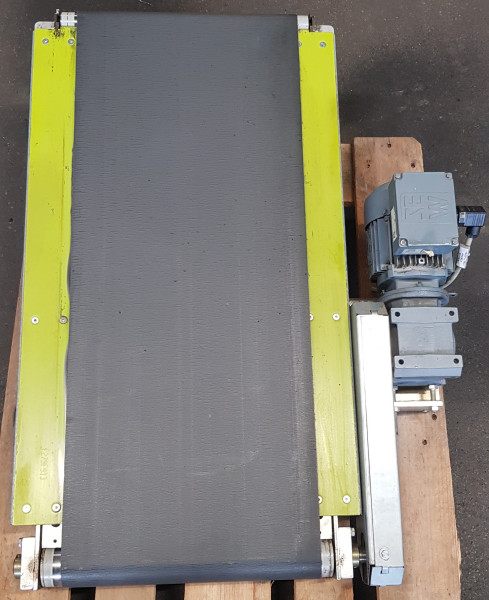

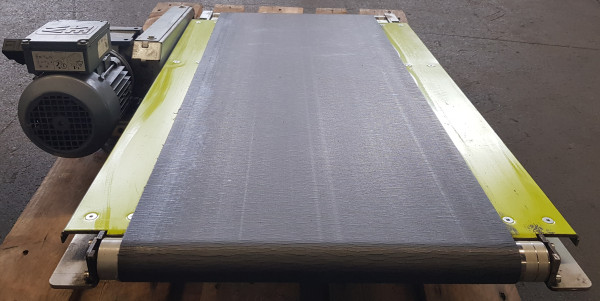

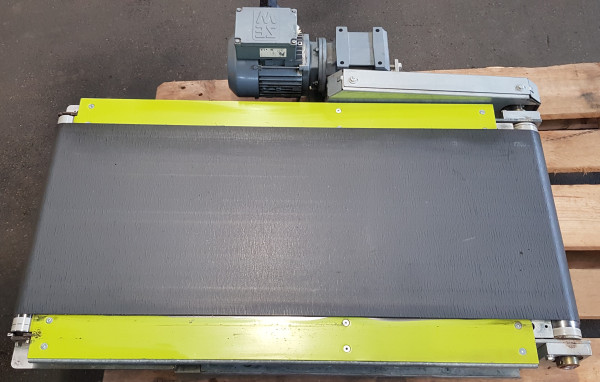

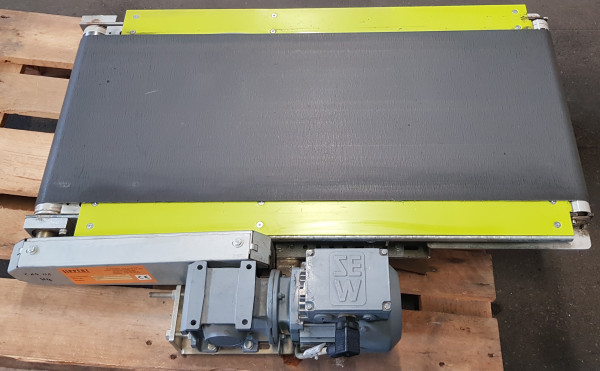

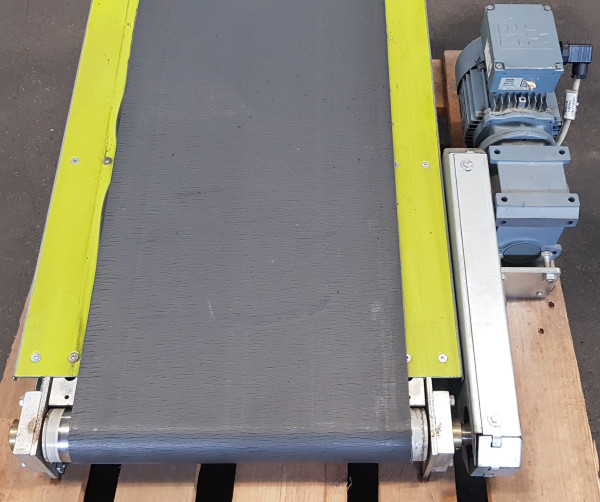

Lippert belt conveyor belt transfer GF 1000-550-400

RA2508

Technical data:

Conveying length (NL): 1000 mm
Framework width (NB): 550 mm
belt width (GuB): 400 mm
height (BH): 105 mm
support feet: optionally available
Conveying speed (v m/s):
Drive: SEW gear motor S37 DT71D4/MM03/BW1
Electrical data: 50Hz V380-500, kW 0.075 / 0.37 / S1
Deflection roller (UR): Ø = 34 mm
Drive drum (AT): Ø = 64 mm
Belt: Type SNB 5 E
Year of construction: 2001

Optionally available:
Supports
Side guides
frequency converter for stepless speedcontrol

Prices net plus VAT from central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg

Construction year:	2001
condition:	good (used)
Conveying length in mm:	1090
Nominal / outside width in mm:	550
Belt width in mm:	400
Driven:	YES
Engine type:	SEW Eurodrive
KW:	0,37/S1
Ampere:	1,30
scope of delivery:	without supports and side guides
