Mecalux roller conveyor with passage 695+580-540-450
Roller width (RB): 450 mm, Steel rolls
Nominal/outer width (NB): 540 mm
length: 695 mm + 580 mm passage
Rolls diameter: 50 mm
Roller distance 75 mm
Overall height frame: 130 mm
Height with support: 750 mm

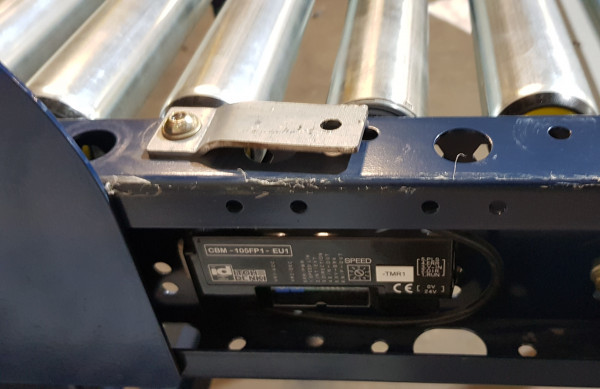

2x ITOH-Deki 16936/010 24V Roller drive
Conveyor speed: freely adjustable with frequency converter between 0.543 and 0.95 m/s
Scope of delivery: with supports
Side guide one-sided 25,00 Euro p. p. m. plus VAT.
Side guides on both sides 50,00 Euro p. lfm plus VAT
Prices net plus VAT. ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg
|Electric data:||24V ITOH-Deki|
|condition:||very good (used)|
|Conveying length in mm:||695+580|
|Nominal / outside width in mm:||540|
|Roll width in mm:||450|
|Roll division in mm:||75|
|scope of delivery:||including supports|
