Lippert Belt Conveyor Riser Belt Conveyor GF 4920-550-400

€2,362.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Lippert belt conveyor ascending belt GF 4920-550-400 RA1606 The Lippert belt conveyor is... more
Product information "Lippert Belt Conveyor Riser Belt Conveyor GF 4920-550-400"

Lippert belt conveyor ascending belt GF 4920-550-400

RA1606

The Lippert belt conveyor is from 2001 and in a good (used) condition. The belt conveyor has a SEW brand motor with MOVIMOT frequency converter to control the speed. Side guides and/or light barriers can be mounted on request at extra cost. Supports are not included in the delivery. These are optionally available on request.

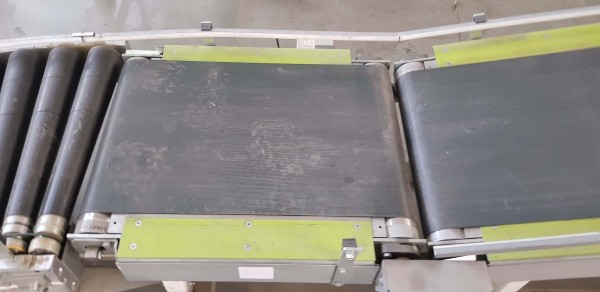

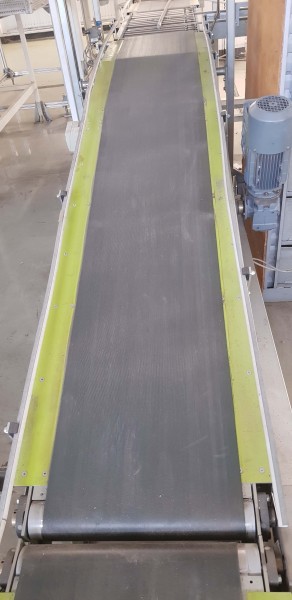

The pictures shown of the conveyor system were taken in a logistics center while it was still installed.



Technical data:

Conveyor length (NL): 4920 mm (leading belt + ascending belt with bend and upper straight)
stand width (NB): 550 mm
belt width (GuB): 400 mm
overall height (BH): 105 mm
support feet: optional
Conveyor speed (v m/s): adjustable up and down with frequency converter

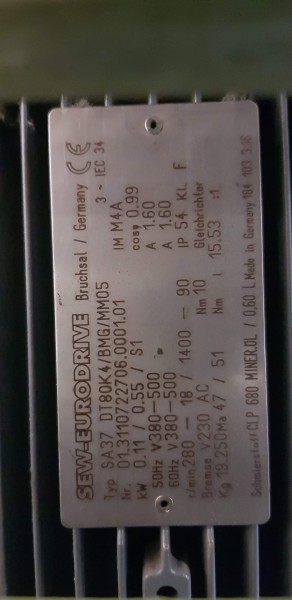

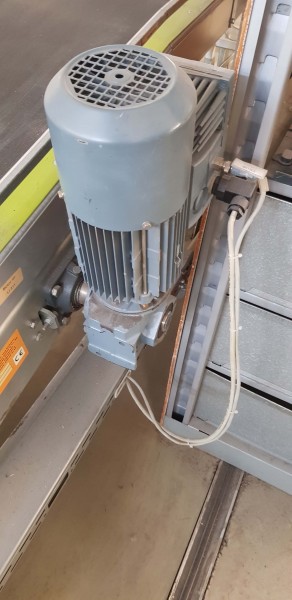

Drive: SEW gearmotor SA37 DT80K4/MM05/BW1
Electrical data: 50Hz V380-500, kW 0.11 / 0.55 / S1
Idler pulley (UR): Ø = 81 mm
Drive pulley (AT): Ø = 131 mm
Belt: Type XVT-2128
Year of manufacture: 2001
incline / decline: adjustable

Optionally available:
Supports: 70,00 Euro p. piece plus VAT.
Side guides one-sided: 25,00 Euro p. m. plus VAT.
Side guides on both sides: 50,00 Euro p. rm plus VAT.



Prices net plus VAT ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg, Germany





Construction year: 2001
condition: good (used)
Conveying length in mm: 8000
Nominal / outside width in mm: 750
Belt width in mm: 600
Driven: YES
Engine type: SEW Eurodrive Zentralantrieb mit Spannstation
KW: 0,75/S1
Ampere: 1,90
Conveyor speed m / s: freely adjustable
scope of delivery: without supports and side guides
