Transnorm spiral helix belt curve conveyor left GKF 85°-775-550 IR600

€2,699.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Transnorm spiral helix belt curve conveyor left  85°-775-550 IR600 RA1658 The Transnorm... more
Product information "Transnorm spiral helix belt curve conveyor left GKF 85°-775-550 IR600"

Transnorm spiral helix belt curve conveyor left  85°-775-550 IR600

RA1658

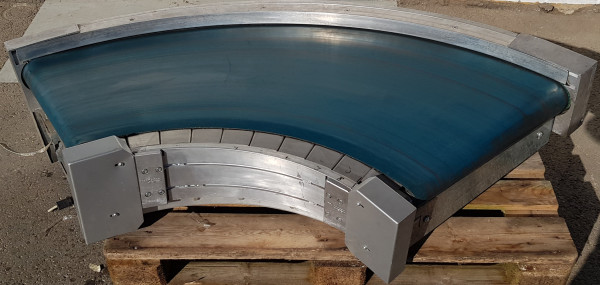

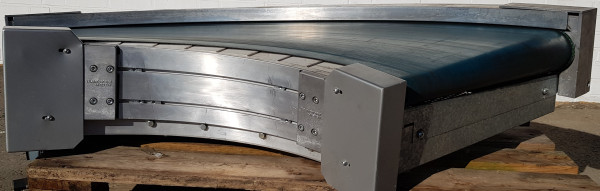

The Transnorm belt curve conveyor is in good condition (used) and fully functional. It has a gear motor of the brand SEW. Supports and are not included. These are optionally available on request.

Belt curves are frequently used in intralogistics for the internal transport of unit loads and are an indispensable part of modern distribution centers.
Transnorm belt curves impress with performance and reliability. Thanks to a low-tension drive, over the entire belt width, long operating times are no problem. Conical drums and a specially developed belt guide system ensure the smoothest possible running.

Technical data:

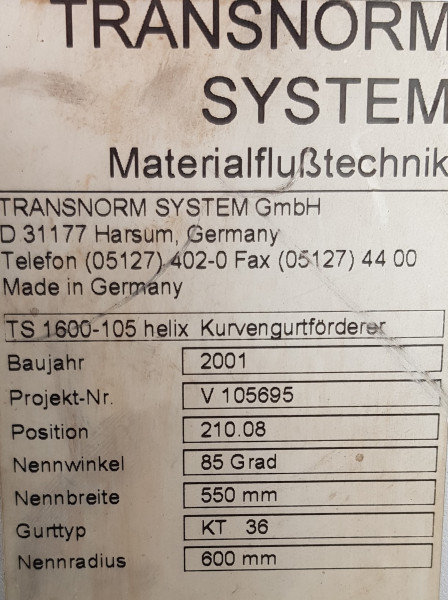

Type designation: belt curve conveyor TS 1600-105
Conveyor length middle radius (NL): 1703 mm
frame width (NB): 775 mm
belt width (GuB): 550 mm
overall height (BH): 210 mm
inner radius (IR): 600 mm
Conveying angle: 85° degrees (coiled 175mm rising)
Incline: 175 mm / 85° = 741,2 mm / 360°
Support feet: optionally available
Conveying speed (v m/s): adjustable up and down with frequency converter
Drive: SEW gearmotor SA37/T DT80K4/MM05/BW1
Electrical data: 50Hz V380-500, kW 0.11 / 0.55 / S1
Belt: double layer, green, smooth, KT36 (wear see pictures)
year of construction: 2001

Optionally available:
Supports 70.00 Euro p. piece plus VAT.
Side guide one-sided 25,00 Euro p. p. m. plus VAT.
Side guides on both sides 50,00 Euro p. lfm plus VAT

Prices net plus VAT ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg, Germany





condition: good (used)
scope of delivery: including Movimot frequency converter, without supports and side guides
Driven: YES
Nominal / inner radius in mm: 600
Conveyor speed m / s: freely adjustable
KW: 0,55/S1
Construction year: 2001
Belt width in mm: 550
Running direction: LINKS
Nominal / outside width in mm: 775
angle: 85°
Engine type: Bremse, SEW Movi-Mot
Slope / gradient: 175 mm / 85°
