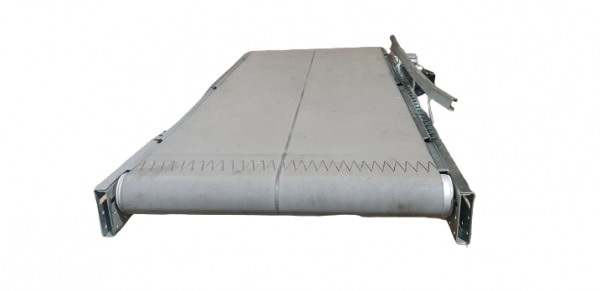

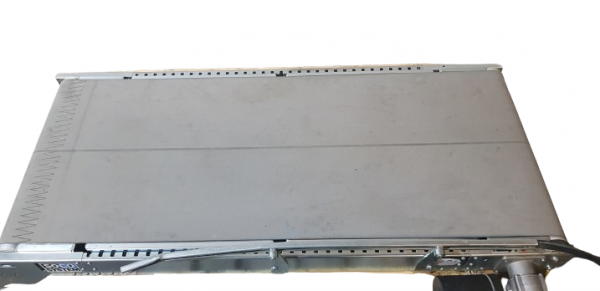

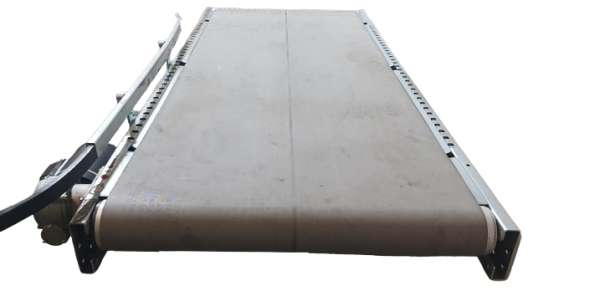

SOCO Heavy duty Belt Conveyor GF 1470-760-650

Preview: SOCO Heavy duty Belt Conveyor GF 1470-760-650

SOCO Heavy duty Belt Conveyor GF 1470-760-650

€1,923.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Order number: RA2028

SOCO RA2028 Technical data: Conveyor length (NL): 1470 mm Framework width (NB): 670 mm... more

Close menu

Product information "SOCO Heavy duty Belt Conveyor GF 1470-760-650"

SOCO

RA2028

Technical data:

Conveyor length (NL): 1470 mm
Framework width (NB): 670 mm
belt width (GuB): 580 mm
height (BH): 110 mm
support feet: optionally available
Conveying speed (v m/s): 0,33

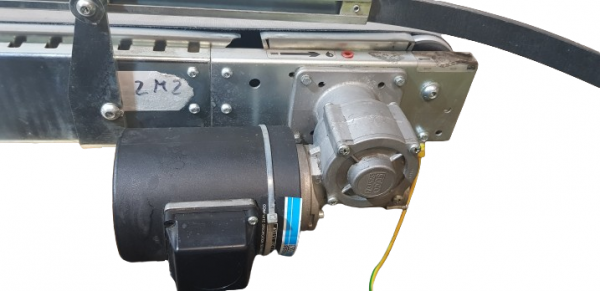

Drive: gear motor
Electrical data: 50Hz V380-500, kW 0.12 / S1
Feature: Massive design, belt run surface metal instead of wood

Optionally available:
Supports
Side guide one and both sides

Prices net plus VAT. ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg

condition:	good (used)
Conveying length in mm:	1470
Nominal / outside width in mm:	670
Belt width in mm:	580
Driven:	YES
KW:	0,12
Conveyor speed m / s:	freely adjustable, 0,333
scope of delivery:	without supports and side guides
