Gebhardt Belt conveyor system conveyor belt 5549-610-500 + 900-610-500

€2,200.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Gebhardt Belt conveyor system 5549-610-500 with pre-flow belt 900-610-500 RA1005 The belt... more
Product information "Gebhardt Belt conveyor system conveyor belt 5549-610-500 + 900-610-500"

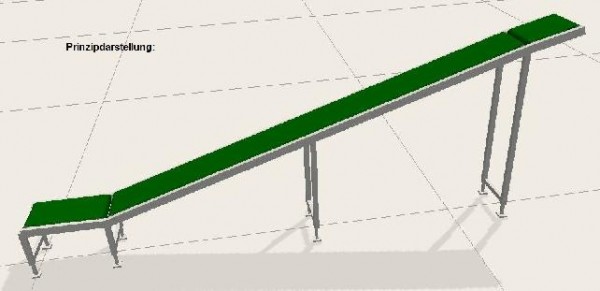

Gebhardt Belt conveyor system 5549-610-500 with pre-flow belt 900-610-500

RA1005

The belt conveyor system from Gebhardt is from 2007 and is in a very good (used) condition. It has an engine of the brand SEW. The system can be used in up-and-down operation. Inclination angles are adjustable as desired, upper arc and supports can be adjusted. Columns are not included in the scope of delivery. These are optionally available.

Consisting of: 1 x pre-flowstrip, 1 x main band, 1 x sheet piece

Technical data:

Manufacturer: Gebhardt
Type: 300.10
Position: GE 12.20
Built: 2007
Condition: very good (used)
Engine: fully functional
Length main band: 5549 mm (incl. top bow)
Nominal/outer width (NB): 610mm
Belt width (GB): 500 mm
Webbing: slightly structured
Length pre-flow belt: 900 mm
Length of sheet: 613 mm
Webbing: smooth
Heights OK Strap: H 1 bottom + 650 mm H 2 top 2,300 mm
Height difference: + 1650 mm, slope/slope 19Â ° or 34Â °
Engine Type: SEW Gear motor Central drive with clamping station
Engine Power: kW 0.37/S1 Hz 50 A 2.00/1.15
Conveyor speed: 0.3 m/s
Scope of delivery: without supports (if necessary please enquiries)
Optional: supports



Payment: after invoicing with advance payment
Delivery time: approx. 3 - 5 working days after receipt of payment

For an individual, expert consultation, simply contact us. Just contact us by phone or e-mail. We are happy to help you plan and implement your projects. We look forward to hearing from you.

Yours sincerely,

Your team at Dr. Sonntag GmbH & Co. KG - your specialist and contact for intralogistics

Construction year: 2007
condition: very good (used)
Conveying length in mm: 5549 + 900
Nominal / outside width in mm: 610
Belt width in mm: 500
Driven: YES
Engine type: SEW Eurodrive Zentralantrieb mit Spannstation
KW: 0,37/S1
Ampere: 2,00/1,15
Conveyor speed m / s: 0,3
scope of delivery: without supports and side guides
