Mecalux transfer roller conveyor slider 24V 90° 1050-815-730

€2,715.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Mecalux transfer roller conveyor slider 90° 1050-815-730 RA1914 Make: Mecalux Running... more
Product information "Mecalux transfer roller conveyor slider 24V 90° 1050-815-730"

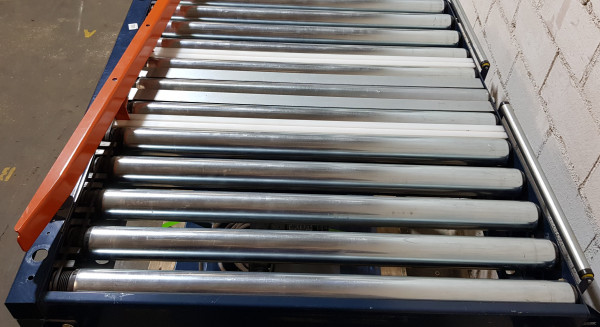

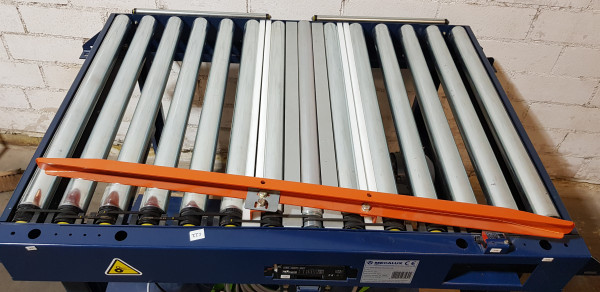

Mecalux transfer roller conveyor slider 90° 1050-815-730

RA1914

Make: Mecalux
Running direction: both directions
Roller width (RB): 730 mm
Nominal/outer width frame (NB): 745 mm
Total width: 815 mm
Length: 1050 mm
Roller diameter: 50 mm
Roller distance: 75 mm

Motor overslide: Lenze-Motor 3x 400V, 0,25 kW

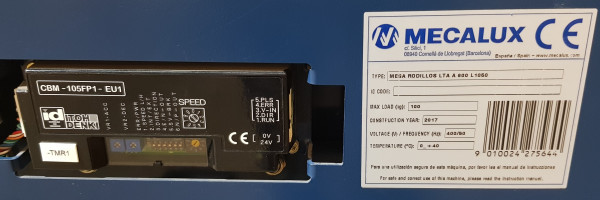

Motor Roller conveyors: 1x ITOH-Deki 16936/010 24V

Height frame: 130 mm
Currently set high: 745 mm
Conveyor speed: freely adjustable with frequency converter between 0.543 and 0.95 m/sr
Optionally available:

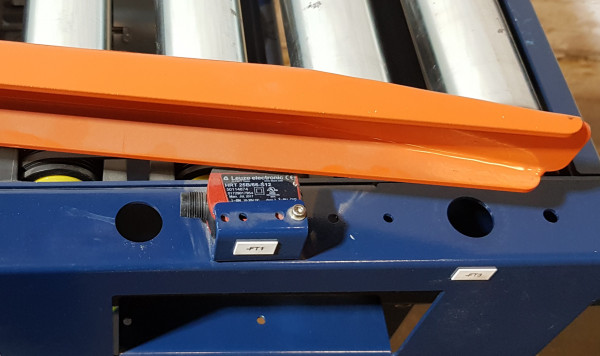

scope of delivery: supports and Light barrier
Side guide one-sided 25,00 Euro p. p. m. plus VAT.
Side guides on both sides 50,00 Euro p. lfm plus VAT

Construction year: 2017
condition: very good (used)
angle: 90°
nominal voltage: 24V, 400
Conveying length in mm: 1050
Nominal / outside width in mm: 745, 815
Roll width in mm: 730
Roll division in mm: 75
Driven: YES
Engine type: Lenze Getriebemotor, ITOH-Deki 16936/010 24V
Conveyor speed m / s: 0,543-0,95
scope of delivery: 1x Lichtschranke, including supports without side guides
