Transnorm roller conveyor Chain overdrive 2515-670-620

Preview: Transnorm roller conveyor Chain overdrive 2515-670-620

Transnorm roller conveyor Chain overdrive 2515-670-620

€2,288.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Order number: RA1870

Transnorm roller conveyor Chain overdrive 2515-670-620 RA1870 Make: Transnorm Roller... more

Close menu

Product information "Transnorm roller conveyor Chain overdrive 2515-670-620"

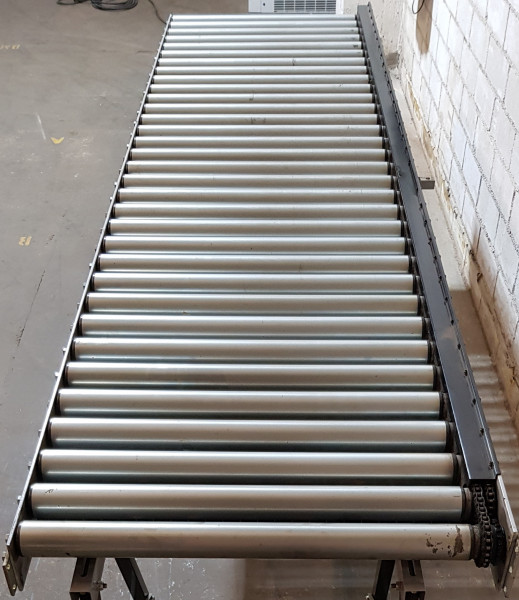

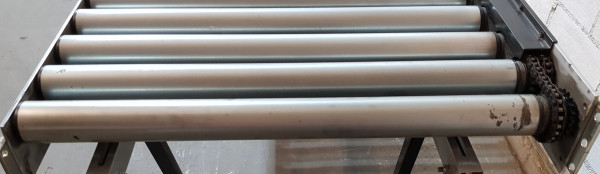

Transnorm roller conveyor Chain overdrive 2515-670-620

RA1870

Make: Transnorm
Roller width (RB): 620 mm
Nominal/outer width (NB): 670 mm
Length: 2515mm
Diameter rollers: 50 mm
Distance between rollers: 80 mm
Frame height: 120
Roller conveyor motor: SEW drive motor with frequency converter
Conveyor speed: freely adjustable with frequency converter

Can be shortened in 80 mm steps

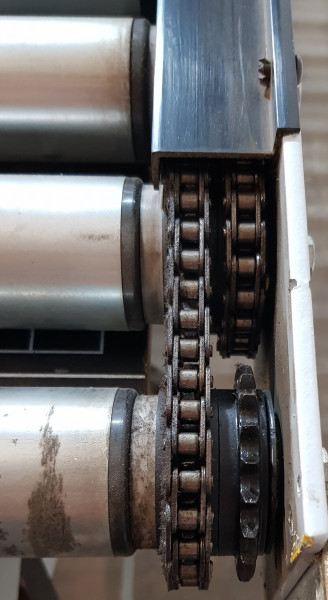

Additional roller conveyors can be connected via the chain drive and driven by a motor.

Optionally available:
Supports
Side guide one and both sides

condition:	good (used)
angle:	0°
nominal voltage:	380-500V
Conveying length in mm:	alle 80 mm kürzbar, 2515, 5030, 7545, 10060
Nominal / outside width in mm:	670
Roll width in mm:	620
Roll division in mm:	80
Driven:	YES
Engine type:	SEW Movi-Mot
Conveyor speed m / s:	freely adjustable
scope of delivery:	without supports and side guides, including Movimot frequency converter
