Transnorm inclined roller conveyor 3130-1180-840
Transnorm inclined roller conveyor 3130-1180-840
Transnorm inclined roller conveyor 3130-1180-840
Transnorm inclined roller conveyor 3130-1180-840
Preview: Transnorm inclined roller conveyor 3130-1180-840 Preview: Transnorm inclined roller conveyor 3130-1180-840 Preview: Transnorm inclined roller conveyor 3130-1180-840 Preview: Transnorm inclined roller conveyor 3130-1180-840


Transnorm inclined roller conveyor 3130-1180-840

Transnorm
€3,487.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Do you have any questions concerning this product?
Description Zusatzinformationen
Description
Transnorm inclined roller conveyor 3130-1180-840 RA1865 Make: Transnorm Roller width (RB): 840... more
Close menu
Product information "Transnorm inclined roller conveyor 3130-1180-840"

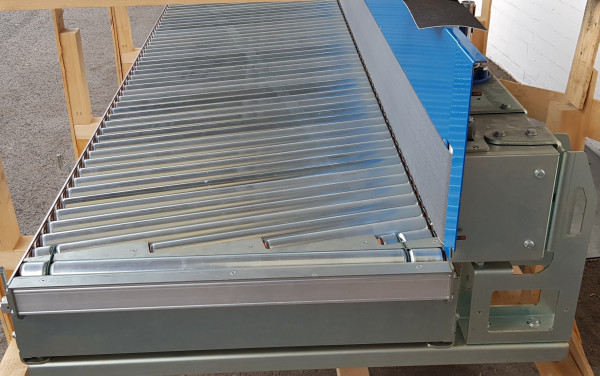

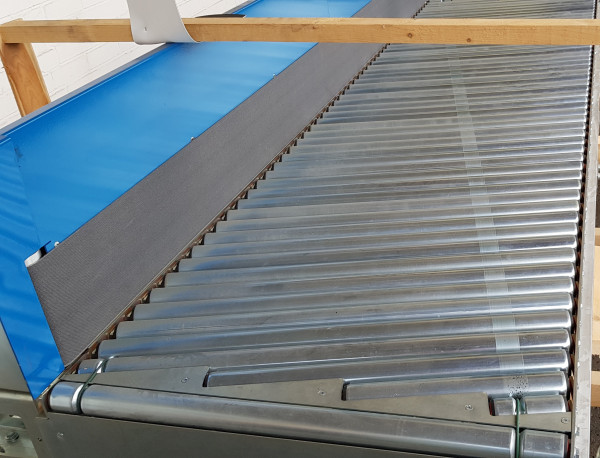

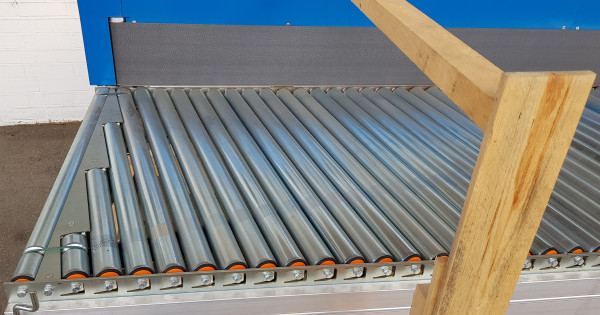

Transnorm inclined roller conveyor 3130-1180-840

RA1865

Make: Transnorm
Roller width (RB): 840 mm
Nominal/outer width (NB): 1180 mm
Length: 3130mm
Diameter rollers: 50 mm
Distance between rollers: 55 mm
Roller conveyor motor: SEW drive motor

frame height: 210

410 mm side guide with 200mm belt conveyor included

Conveyor speed: freely adjustable with frequency converter

Optionally available:
Supports

frequency converter for the two SEW motors

condition: Ausstellungsstück
nominal voltage: 380-500V
Conveying length in mm: 3130
Nominal / outside width in mm: 1180
Roll width in mm: 840
Roll division in mm: 55
Driven: YES
Engine type: 2 x SEW Getriebemotor
scope of delivery: inklusive 2 x SEW Getriebemotor, ohne Frequenzumrichter, including side guides without supports
Zusatzinformationen
Zusatzinformationen

For individual, expert advice, simply get in touch with us.
Simply contact us by phone or email.
We will be happy to help you plan and implement your projects.

We look forward to hearing from you.

With kind regards

Your team at Dr. Sonntag GmbH & Co. KG
Your specialist and contact for intralogistics
