Inclined inlet 45°
Inclined inlet 45°
Inclined inlet 45°
Inclined inlet 45°
Inclined inlet 45°
Inclined inlet 45°
Preview: Inclined inlet 45° Preview: Inclined inlet 45° Preview: Inclined inlet 45° Preview: Inclined inlet 45° Preview: Inclined inlet 45° Preview: Inclined inlet 45°


Inclined inlet 45°

Lippert
€1,100.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Do you have any questions concerning this product?
Description Zusatzinformationen
Description
Lippert Schägzulauf 45° RA1821 Baujahr: 2012 Förderwinkel: 45° (Zwickel)... more
Close menu
Product information "Inclined inlet 45°"

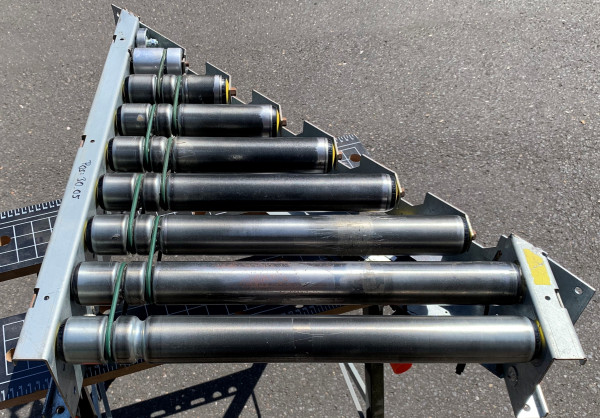

Lippert Schägzulauf 45°

RA1821
Baujahr: 2012

Förderwinkel: 45° (Zwickel)
Nenn-/Außenbreite (NB): 570 mm
Nutzbreite (NUB): 500 mm
Foerdergeschwindigkeit: regelbar
Rollendurchmesser: 50 mm Interroll, Sechskant inkl. Druckfeder

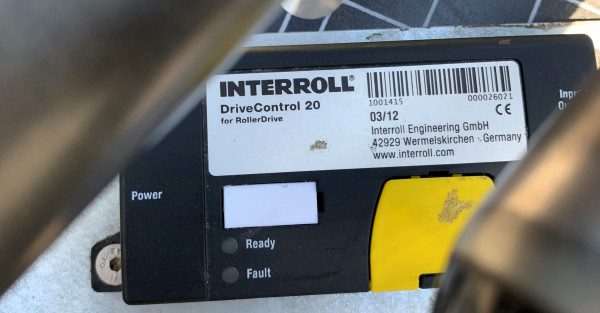

Antrieb: 1x Drivecontrol 20 mit 24V
Material: stahl verzinkt
Achsabstand: 75 mm
Bauhöhe: 130 mm

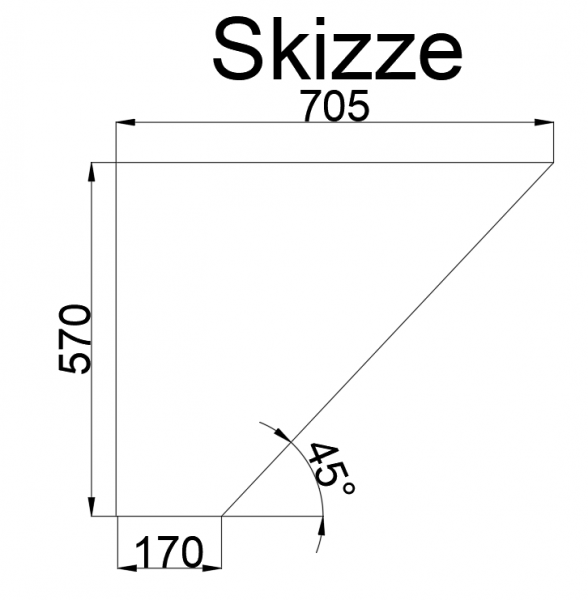

Transportabmessungen:
L x B x H = 705 x 570 x 130 mm

condition: good (used)
Construction year: 2012
angle: 45°
nominal voltage: 24V
Conveying length in mm: 705
Nominal / outside width in mm: 570
Roll width in mm: 50
Roll division in mm: 75
Driven: YES
Engine type: Trommelmotor
KW: -
Ampere: -
Conveyor speed m / s: freely adjustable
scope of delivery: without supports and side guides
Zusatzinformationen
Zusatzinformationen

For individual, expert advice, simply get in touch with us.
Simply contact us by phone or email.
We will be happy to help you plan and implement your projects.

We look forward to hearing from you.

With kind regards

Your team at Dr. Sonntag GmbH & Co. KG
Your specialist and contact for intralogistics
