Lippert belt conveyor belt conveyor GF 780-650-500

€1,717.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

motor:

Lippert belt conveyor GF 780-650-500 RA1430 The Lippert conveyor belt is from 2001 and in... more
Product information "Lippert belt conveyor belt conveyor GF 780-650-500"

Lippert belt conveyor GF 780-650-500

RA1430

The Lippert conveyor belt is from 2001 and in good (used) condition. Lateral guides and/or light barriers can be installed on request at extra cost. Supports are not included in the delivery. These are optionally available on request.

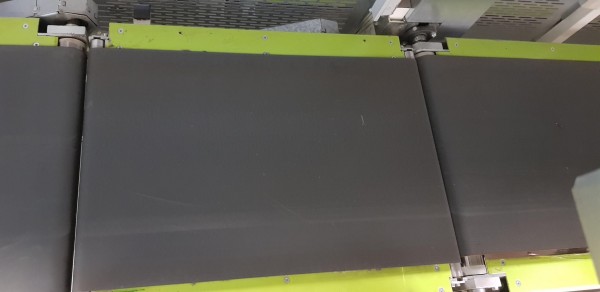

The pictures of the conveyor system shown here were taken in a logistics center while still installed.



Technical data:

Conveying length (NL): 780 mm
Framework width (NB): 650 mm
belt width (GuB): 500 mm
height (BH): 105 mm
support feet: optionally available
Conveying speed (v m/s): with frequency converte adjustable
Drive: SEW gear motor R17DT71D4/MM03/BW1
Electrical data: 50Hz V380-500, kW 0.075 / 0.37 / S1
Deflection roller (UR): Ø = 34 mm
Drive drum (AT): Ø = 81 mm
Belt: Type SNB-5E
Year of construction: 2001

Optionally available:

motor with MOVIMOT frequency inverter to control the speed
Supports
Side guide one and both sides

Prices net plus VAT from central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg





Construction year: 2001
condition: good (used)
Conveying length in mm: 785
Nominal / outside width in mm: 650
Belt width in mm: 500
Driven: YES
Engine type: SEW Eurodrive
KW: 0,37/S1
Ampere: 1,30
Conveyor speed m / s: freely adjustable
scope of delivery: without supports and side guides
