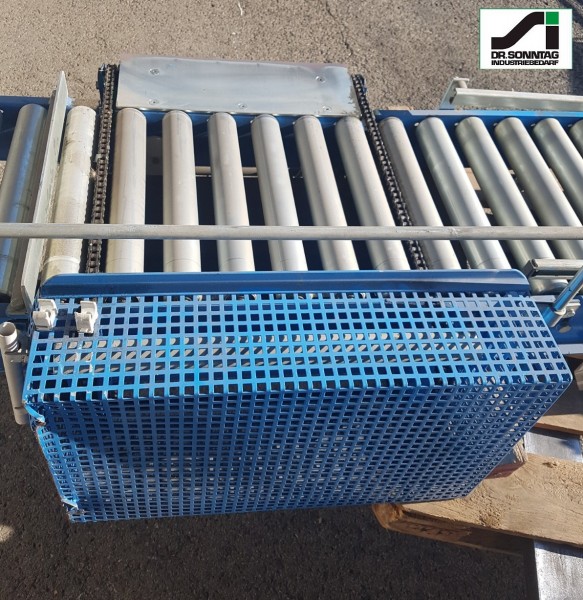

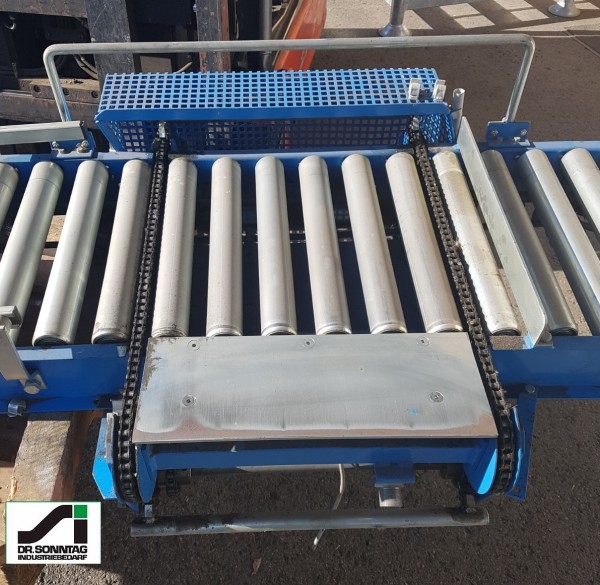

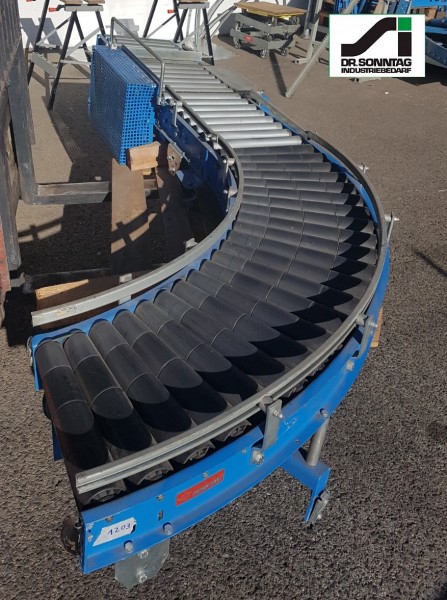

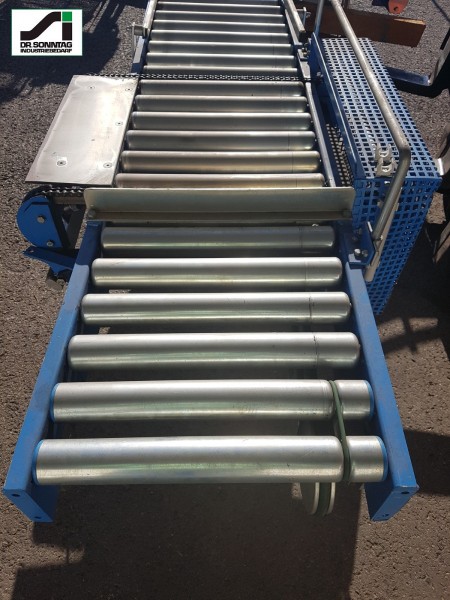

Schulz curved roller conveyor 90° left driven + straight section + pusher 450-390 IR795 + 1600-450-390

€3,446.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

90° roller curve left + 1.600 mm straight pieces with chains above slide as a combination... more
Product information "Schulz curved roller conveyor 90° left driven + straight section + pusher 450-390 IR795 + 1600-450-390"

90° roller curve left + 1.600 mm straight pieces with chains above slide
as a combination

Rolling curve:
90° linkslauf
Width: 390 mm
Nominal width (overall width incl. sidewalls): 450 mm
Inner radius of the curve: 795 mm
medium-RADIUS: 1,000 mm

Straight piece:
Length: 1,600 mm
Width: 390 mm
Total width: 450 mm
Roles, bright zinc-plated
Division: 75 mm
including 90° pull chains, chain clearance 450 mm

Geared motor: 0,25 kW
Conveyor speed: v = 0,3 m/sec.
Drive: round curved belt + straight piece

Guide: both sides included as shown
Support: optional, 3 piece twin supports
