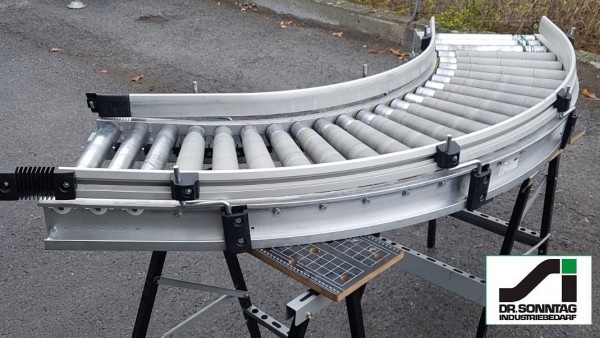

TGW curved roller conveyor 90° left driven + straight section 420-345 IR1050
Prices plus VAT plus shipping costs
Delivery time approx. 5-10 days.
Pick up by arrangement.
- Order number: RA1231
TGW curve roller conveyor 90° left
POS. 03.722
Year of construction: 2012
NB: 420 mm
Usable width: 345 mm plastic rollers
Usable width: 400 mm metal rollers
Inner radius: 1050 mm
Speed: 0.45 m/sec
Guide on both sides
Rolls: conical plastic molding
Role: Metal
without the posts!
Optional: 3 supports
Shipping dimensions: Lxwxh 2200 x 800 x 400 mm
Weight: 110 kg
Running direction: | LEFT |
Construction year: | 2012 |
condition: | very good (used) |
Nominal / inner radius in mm: | 1050 |
Nominal / outside width in mm: | 420 |
Roll width in mm: | 345 |
angle: | 90° |
Driven: | YES |
Engine type: | SEW Eurodrive |
Conveyor speed m / s: | 0,45 |
scope of delivery: | including side guides without supports |
