Transnorm belt curve conveyor GKF 180°-850-650 IR600° left
Prices plus VAT plus shipping costs
Delivery time approx. 5-10 days.
Pick up by arrangement.
- Order number: RA2022

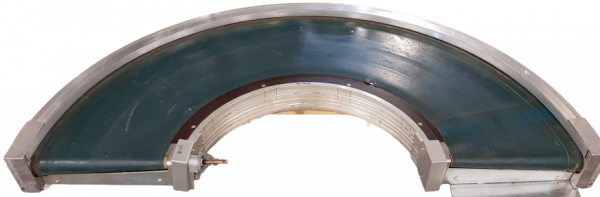

Transnorm belt curve conveyor GKF 180°-850-650 IR600 left
The Transnorm belt curve is in good condition (used) and fully functional. It has a gear motor of the brand SEW. Supports and are not included in the scope of delivery. They are optionally available on request.
Belt curves are often used in intralogistics for the internal transport of unit loads and are indispensable in modern distribution centers.
Transnorm belt curves convince with performance and reliability. Thanks to a low-tension drive over the entire belt width, long operating times are no problem. Conical drums and a specially developed belt guide system ensure the highest possible running smoothness.
The pictures of the conveyor system shown here were taken in a logistics center while still installed.
Type designation: Belt curve conveyor TS 1600-105
Frame width (NB): 850 mm
belt width (GuB): 650 mm
height (BH): 210 mm
Inner radius (IR): 600 mm
Conveying angle: 180° degrees
support feet: optionally available
Conveying speed (v m/s): adjustable up and down with frequency converter
Drive: SEW gear motor SA37 DT80N4/MM07/BW1
Electrical data: 50Hz V380-500, kW 0.15 / 0.75 / S1
Belt: double layer, green, smooth, KT36 (wear see pictures)
Year of construction: 2001
Special feature / Accessories: Lateral guides included on both sides
Prices net plus VAT from central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg
|Nominal / inner radius in mm:||600|
|Nominal / outside width in mm:||850|
|Belt width in mm:||650|
|Engine type:||SEW Eurodrive|
|Conveyor speed m / s:||freely adjustable|
|scope of delivery:||including side guides without supports|
