Transnorm curved belt conveyor right 90°-780-600-IR400

€2,017.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Transnorm belt curve conveyor right 90°-780-600-IR400 RA1832 Belt curves are often used in... more
Product information "Transnorm curved belt conveyor right 90°-780-600-IR400"

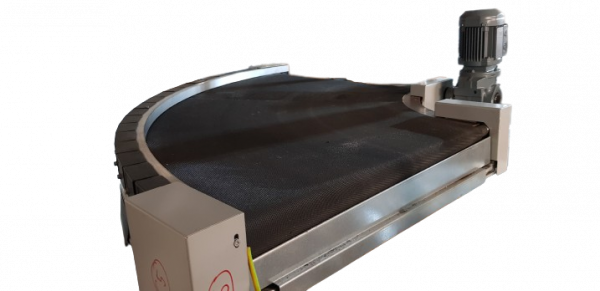

Transnorm belt curve conveyor right 90°-780-600-IR400


Belt curves are often used in intralogistics for the internal transport of unit loads and are indispensable in modern distribution centers.
Transnorm belt curves convince with performance and reliability. Thanks to a low-tension drive over the entire belt width, long operating times are no problem. Conical drums and a specially developed belt guide system ensure the highest possible running smoothness.

Technical data:
Conveying length middle radius (NL): 1100 mm
Frame width (NB): 780 mm
belt width (GuB): 600 mm
height (BH): 170 mm
height including motor (MH): 370 mm
Inner radius (IR): 400 mm
Conveying angle: 90° degrees
Conveying speed (v m/s): 0,27m/s
Drive: SEW gear motor
Electrical data: 50Hz V230/400, kW 0.25 / S1
Belt: wear see pictures. Faulty belts will be replaced for an additional charge
Year of construction: 2012

Optionally available:
Side guide one and both sides
frequency inverter


Prices net plus VAT from central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg

Construction year: 2012
condition: gut
Nominal / inner radius in mm: 400
Nominal / outside width in mm: 780
Belt width in mm: 600
angle: 90°
Driven: YES
Running direction: RIGHT
Engine type: SEW Eurodrive
KW: 0,25/S1
Conveyor speed m / s: 0,27
scope of delivery: ohne Frequenzumrichter, without supports and side guides
