Transnorm curved belt conveyor left 90°-730-500-IR600

€2,277.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Transnorm belt curve conveyor left 90°-730-500-IR600 RA1976 Belt curves are often used in... more
Product information "Transnorm curved belt conveyor left 90°-730-500-IR600"

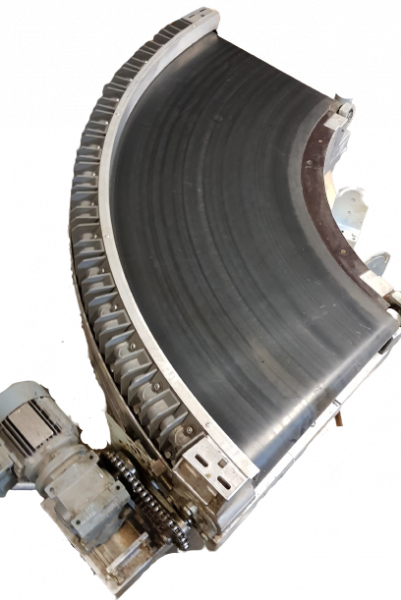

Transnorm belt curve conveyor left 90°-730-500-IR600


Belt curves are often used in intralogistics for the internal transport of unit loads and are indispensable in modern distribution centers.
Transnorm belt curves convince with performance and reliability. Thanks to a low-tension drive over the entire belt width, long operating times are no problem. Conical drums and a specially developed belt guide system ensure the highest possible running smoothness.

Technical data:
Frame width (NB): 730 mm
belt width (GuB): 500 mm
height (BH): 280 mm
Inner radius (IR): 600 mm
Conveying angle: 90° degrees
Conveying speed (v m/s)
Drive: SEW gear motor
Electrical data: 50Hz V230/400, kW 0.37 / S1
Belt:KT58,  wear see pictures
Year of construction: 1995

Optionally available:
Side guide one and both sides
frequency inverter


Prices net plus VAT from central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg

Construction year: 1995
condition: gut
Nominal / inner radius in mm: 600
Nominal / outside width in mm: 730
Belt width in mm: 500
angle: 90°
Driven: YES
Running direction: LINKS
Engine type: SEW Eurodrive
KW: 0,37/S1
scope of delivery: ohne Frequenzumrichter, without supports and side guides

If you need other dimensions or individual, professional advice, please contact us.
Simply contact us by phone or mail or use our filters on our website:

We will be happy to help you with the planning and implementation of your projects.

We look forward to hearing from you.

With kind regards

Your team of Dr. Sonntag GmbH & Co. KG
Your specialist and contact for intralogistics
