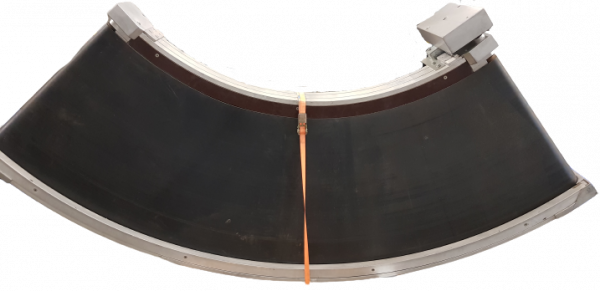

Transnorm curved belt conveyor left 90°-1000-800-IR1200

€2,877.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Belt:

with replacement belt?

Transnorm belt curve conveyor left 90°-1000-800-IR1200 RA1971 Belt curves are often used in... more
Product information "Transnorm curved belt conveyor left 90°-1000-800-IR1200"

Transnorm belt curve conveyor left 90°-1000-800-IR1200

RA1971

Belt curves are often used in intralogistics for the internal transport of unit loads and are indispensable in modern distribution centers.
Transnorm belt curves convince with performance and reliability. Thanks to a low-tension drive over the entire belt width, long operating times are no problem. Conical drums and a specially developed belt guide system ensure the highest possible running smoothness.

Technical data:
Frame width (NB): 1000 mm
belt width (GuB): 800 mm
height (BH): 160 mm
height including motor (MH): 550 mm
Inner radius (IR): 1200 mm
Conveying angle: 90° degrees
Conveying speed (v m/s) 0,03-1,3m/s infinitely variable with frequency inverter
Drive: SEW Movi Mot
Electrical data: 50Hz V230/400, kW 1,1 / S1
Belt: KT94,  wear see pictures
Year of construction: 2005

Optionally available:
Supports
Side guide one and both sides



Prices net plus VAT from central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg

Construction year: 2005
condition: gut
Nominal / inner radius in mm: 1200
Nominal / outside width in mm: 1000
Belt width in mm: 800
angle: 90°
Driven: YES
Running direction: LINKS
Engine type: SEW Movi-Mot
KW: 1,1/S1
Conveyor speed m / s: frei einstellbar bis 1,25m/s
scope of delivery: without supports and side guides
