Transnorm spiral helix belt curve conveyor right 90°-840-650 IR600

€2,799.00 *

Prices plus VAT plus shipping costs

Delivery time approx. 5-10 days.
Pick up by arrangement.

Transnorm spiral helix belt curve conveyor right 90°-840-650 IR600 RA1869 The Transnorm belt... more
Product information "Transnorm spiral helix belt curve conveyor right 90°-840-650 IR600"

Transnorm spiral helix belt curve conveyor right 90°-840-650 IR600

RA1869

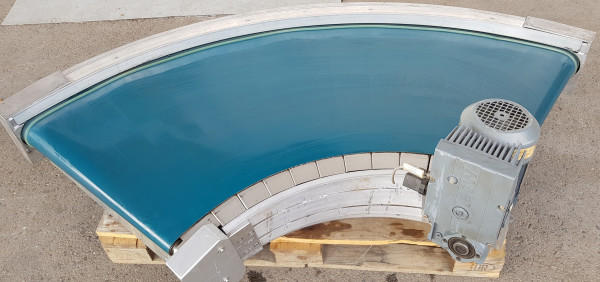

The Transnorm belt curve is in good condition (used) and fully functional. It has a gear motor of the brand SEW. Supports and are not included in the scope of delivery. They are optionally available on request.

Belt curves are often used in intralogistics for the internal transport of unit loads and are indispensable in modern distribution centers.
Transnorm belt curves convince with performance and reliability. Thanks to a low-tension drive over the entire belt width, long operating times are no problem. Conical drums and a specially developed belt guide system ensure the highest possible running smoothness.

Technical data:

Type designation: Belt curve conveyor TS 1600-105
Frame width (NB): 840 mm
belt width (GuB): 650 mm
height (BH): 210 mm
Inner radius (IR): 600 mm
Conveying angle: 90° degrees
Incline: 210 mm / 90° = 840 mm / 360°
support feet: optionally available
Conveying speed (v m/s): adjustable up and down with frequency converter
Drive: SEW gear motor SA37 DT80K4/MM05/BW1
Electrical data: 50Hz V380-500, kW 0.11 / 0.55 / S1
Belt: double layer, green, smooth, KT36 (wear see pictures)
Year of construction: 2001

Optionally available:
Supports 70.00 Euro p. piece plus VAT.
Side guide one-sided 25,00 Euro p. p. m. plus VAT.
Side guides on both sides 50,00 Euro p. lfm plus VAT



Prices net plus VAT from central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg





condition: good (used)
Driven: YES
Running direction: RIGHT
scope of delivery: including Movimot frequency converter, including side guides without supports
Nominal / inner radius in mm: 600
Engine type: SEW Eurodrive
angle: 90°
Conveyor speed m / s: freely adjustable
KW: 0,55/S1
Construction year: 2001
Belt width in mm: 650
Ampere: 1,60
Slope / gradient: 210 mm / 90°
Nominal / outside width in mm: 840
