Lippert belt conveyor belt conveyor GF 20000-610-450
Prices plus VAT plus shipping costs
Delivery time approx. 5-10 days.
Pick up by arrangement.
- Order number: RA1481
Lippert belt conveyor GF 20000-610-450
The Lippert conveyor belt is from 2001 and in good (used) condition. The belt conveyor has a SEW motor with MOVIMOT frequency inverter to control the speed. Lateral guides and/or light barriers can be installed on request at extra cost. Supports are not included in the delivery. These are optionally available on request.

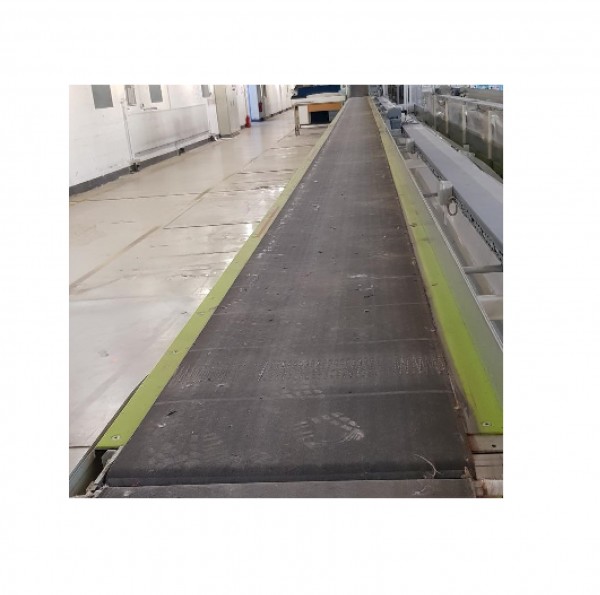

The pictures of the conveyor system shown here were taken in a logistics center while still installed.
Conveying length (NL): 20.000 mm
Framework width (NB): 610 mm
belt width (GuB): 450 mm
height (BH): 105 mm
support feet: optionally available
Conveying speed (v m/s): adjustable up and down with frequency converter
Drive: SEW gear motor S37 DT80N4/MM07/BW1
Electrical data: 50Hz V380-500, kW 0.15 / 0.75 / S1
Deflection roller (UR): Ø = 64 mm
Drive drum (AT): Ø = 81 mm
Belt: Type NNT-10 ENBU
Year of construction: 2001
Side guide one and both sides
Prices net ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg
|Conveying length in mm:||20.000|
|Nominal / outside width in mm:||610|
|Belt width in mm:||450|
|Engine type:||SEW Eurodrive Zentralantrieb mit Spannstation|
|Conveyor speed m / s:||freely adjustable|
|scope of delivery:||without supports and side guides|
