Lippert belt conveyor GF 2980-650-500
The Lippert conveyor belt is from 2001 and in good (used) condition. The belt conveyor has a SEW motor with MOVIMOT frequency inverter to control the speed. Lateral guides and/or light barriers can be installed on request at extra cost. Supports are not included in the delivery. These are optionally available on request.

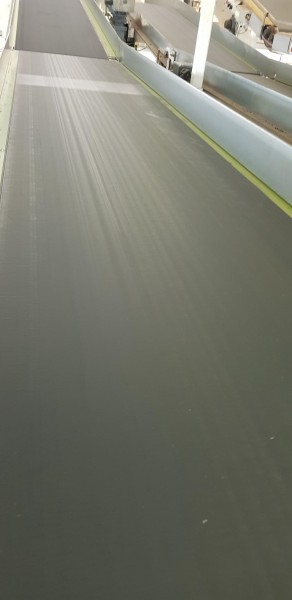

The pictures of the conveyor system shown here were taken in a logistics center while still installed.
Conveying length (NL): 2980 mm
Framework width (NB): 650 mm
belt width (GuB): 500 mm
height (BH): 105 mm
Support feet optionally available
Conveying speed (v m/s): adjustable up and down with frequency converter
Drive: SEW gear motor R17 DT71D4/MM03/BW1
Electrical data: 50Hz V380-500, kW 0.075 / 0.37 / S1
Deflection roller (UR): Ø = 34 mm
Drive drum (AT): Ø = 81 mm
Belt: Type SNB-8E
Year of construction: 2001
Supports: 70.00 Euro p. piece plus VAT.
Side guide one-sided: 25.00 Euro p. running meter plus VAT.
Side guides on both sides: 50.00 Euro p. running meter plus VAT.
Prices net plus VAT from central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg
|Conveying length in mm:||2980|
|Nominal / outside width in mm:||650|
|Belt width in mm:||500|
|Engine type:||SEW Eurodrive Zentralantrieb mit Spannstation|
|Conveyor speed m / s:||freely adjustable|
|scope of delivery:||without supports and side guides|
